Gateway Arch Museum
Custom Service Crane, Inc. performed a comprehensive rigging projects for the Museum at the Gateway Arch in St. Louis, MO. The new museum's gallery, called New Frontiers, features three over-sized, fragile glass panels that present film clips on western expansion in the United States. These panels required highly specialized rigging, including a customized steel cart to maneuver them through tight spaces. View our gallery of the project below to see how obstacles are merely opportunities for our innovative team to get creative!
In preparation of all our jobs, our Estimators work with customers to assess the exact needs and unique constraints for their project. Custom Service Crane offers free Job Site Evaluations where needed. Our most complex jobs will also provide a lift plan, complete with any necessary rigging plans, details on certifications, and outline of safety materials, notes on job meetings, and a diagram of the job if required. No job is the same and our years of experience have prepared us to offer the custom service that is in our name!

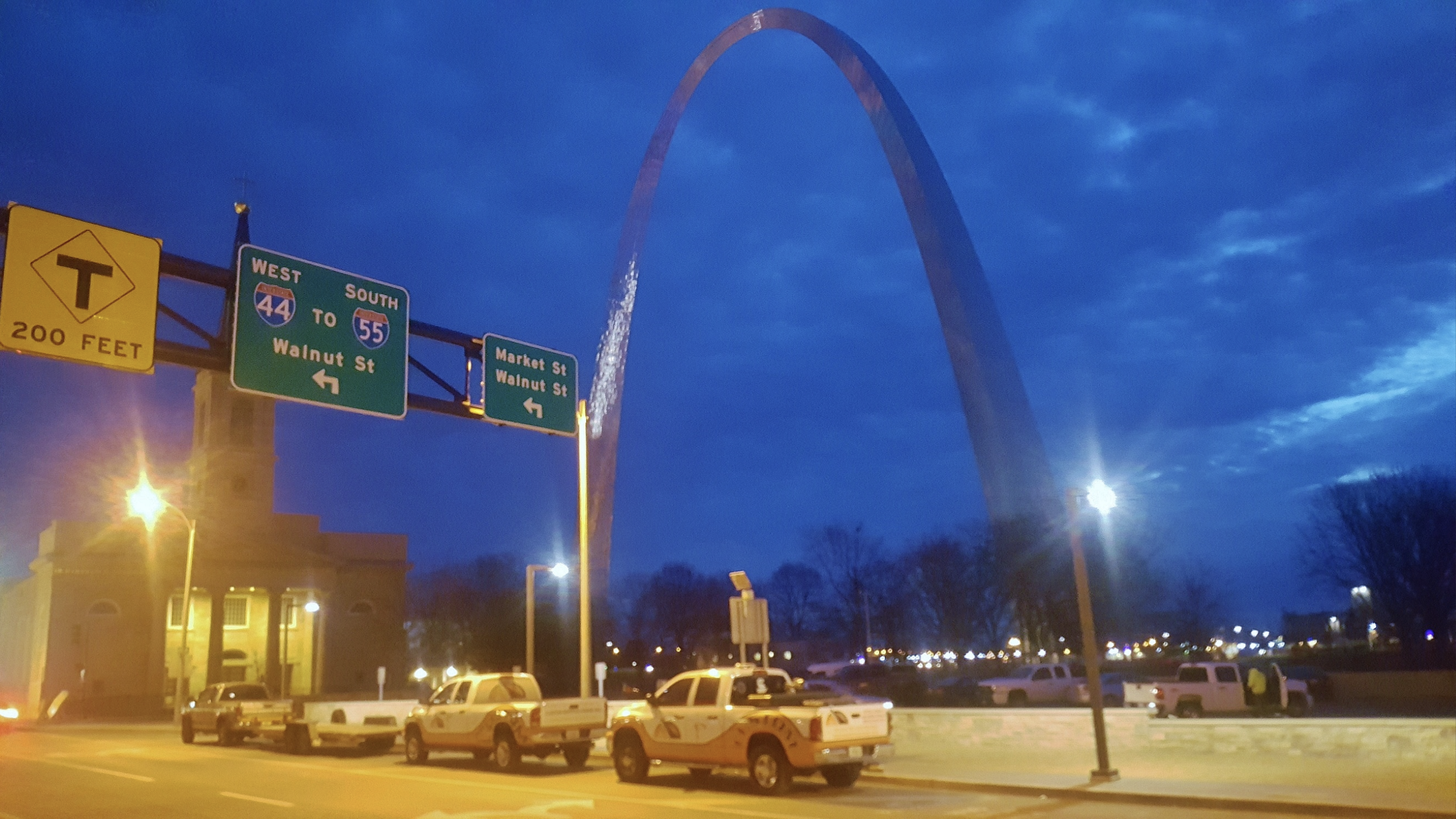

Three Custom Service Crane trucks and a trailer are parked in front of the St. Louis Arch, prepping for a comprehensive rigging project.
The preliminary AutoCAD design for the customized cart created to transport three large projection screens below the St. Louis Arch for a new museum exhibit.
The customized cart being constructed in Custom Service Crane's warehouse.
Part of the welding process on the cart creating flexible joints capable of securely transporting the heavy projection screens at approximately a 45 degree angle.
The steel cart's joints are tested - success!
Three large screens are ready to be transported to the St. Louis Arch.
Loading the heavy projection screens onto the cart. Gross weight of the three screens was over 8,400 lbs.

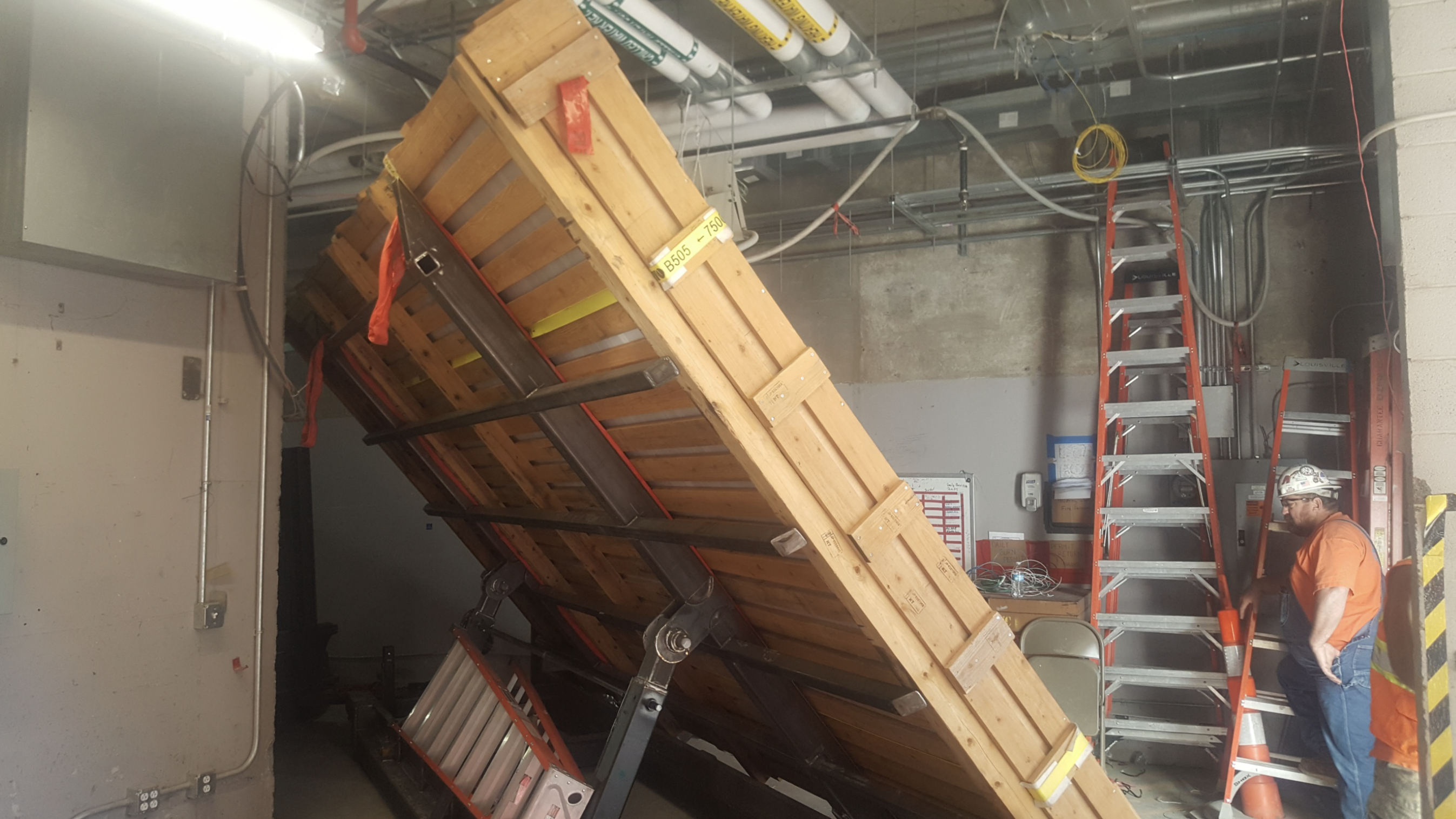

Preparing to go through the short door at the entrance.
View of the angle required to maneuver the cart and screens to the exhibit room.
Projector screens are cradled and carefully maneuvered underneath the St. Louis Arch.
The specially constructed cart was made to maneuver the screens through a 10' wide door and 7' wide hallway.
The CSC team pulls (and pushes) together! Two forklifts are rigged on both sides of the heavy cart to transport it down the narrow hallway.

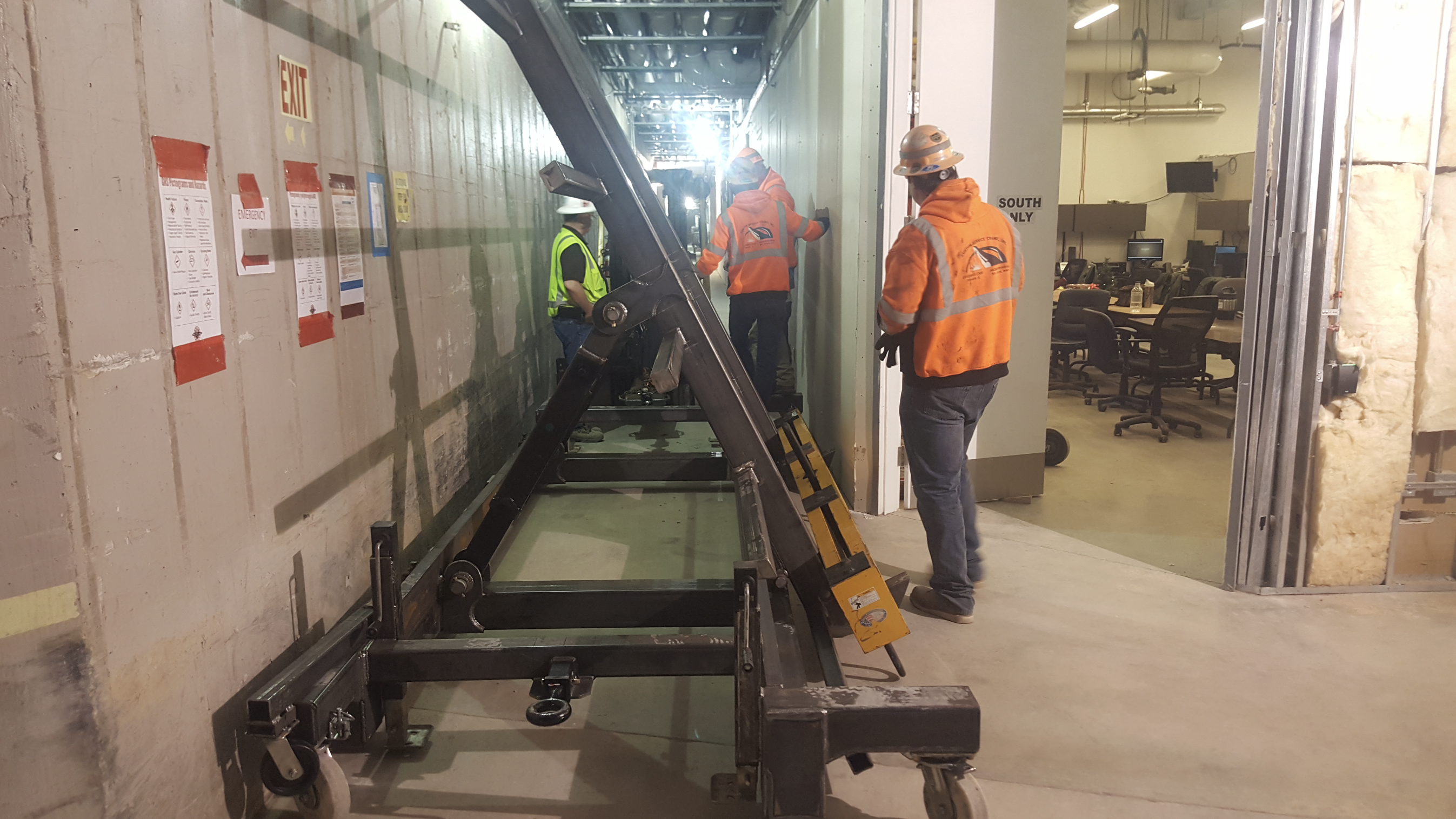

A trial run through the most narrow hall with cart proved we'll make it by just a couple of inches!
Narrow but not impossible; obstacles are merely opportunities to get creative for CSC's innovative team!
Not much room to spare - the projection screens measure nearly the full cross-angle dimension of the hallway at 10'.
The projection screens have made into the exhibit hall! CSC uses an electric mini crane to hoist the first screen into place.
One projection screen is hoisted into place on the floor.
CSC hooks up the next projection screen to be maneuvered into place.
Three projection screens are successfully rigged into place and stabilized with supports.
Now open to the public, the three over-sized, fragile glass panels feature engaging films on early wester expansion. CSC appreciates the opportunity to assist on this comprehensive project for the Museum at the Gateway Arch.
